ALPHA 48/3B

#2485

Alpha 48/3B is a powerful Direct Drive Industrial Grade Fan manufactured with a U.S. Heavy-Duty Galvanized Steel Frame to prevent rusting and guarantee durability. It comes with an advanced German-made adjustable Polypropylene Impeller. The Alpha 48/3T is designed to Control or Remove Heat Stagnation, Fumes, Smoke, Humidity and Odors in Confined Settings. The Alpha 48/3L is assembled and tested in our headquarters in Pembroke Pines, Florida.

In Confined Settings, How does the Alpha 48/3B help control Heat, Smoke, Fumes, Humidity, and Odors?

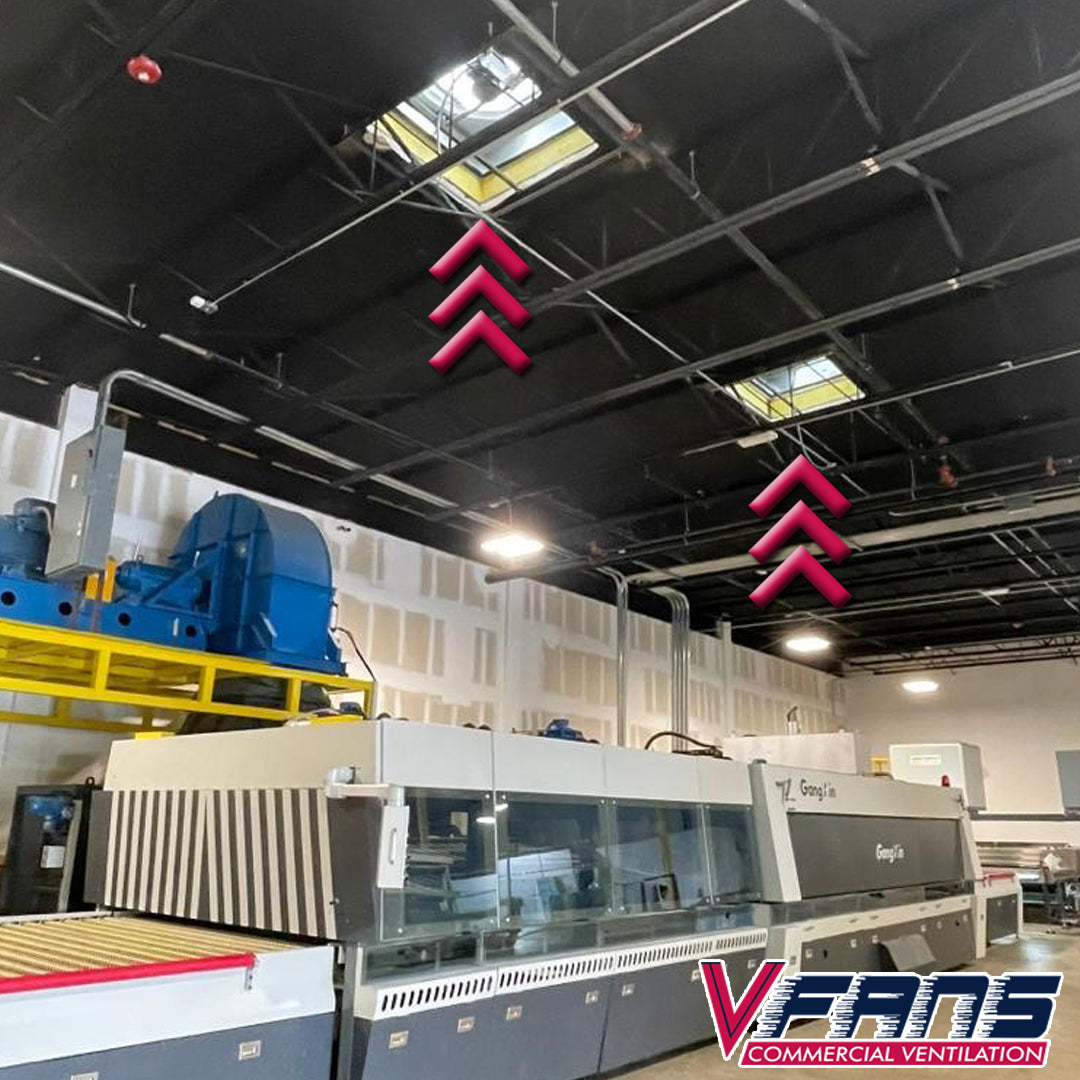

By generating Airflow between the enclosure’s extremities. In enclosed areas such as Warehouses, Airflow can be created when on one end of the building fresh air is forced in while at the opposite end it is blown out.

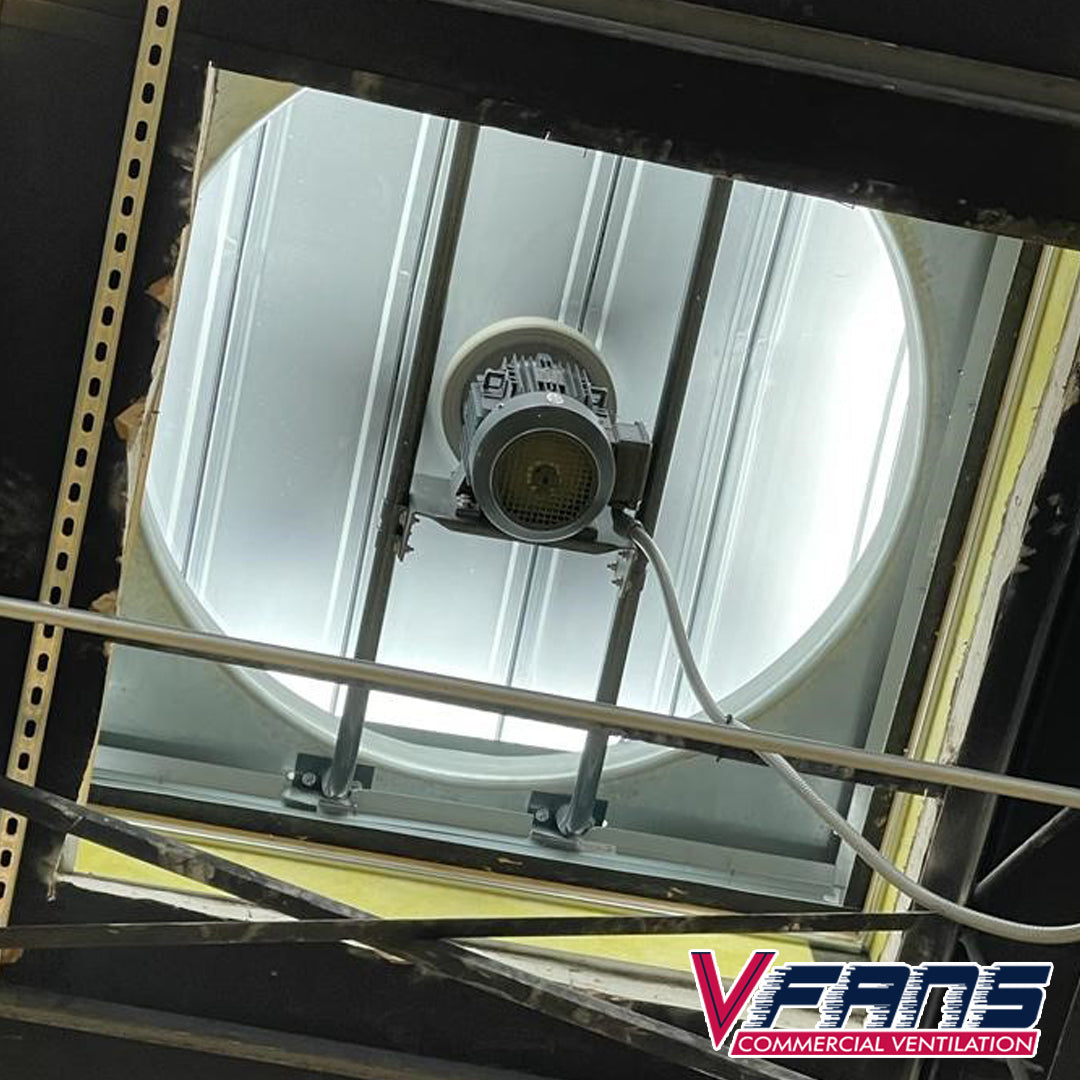

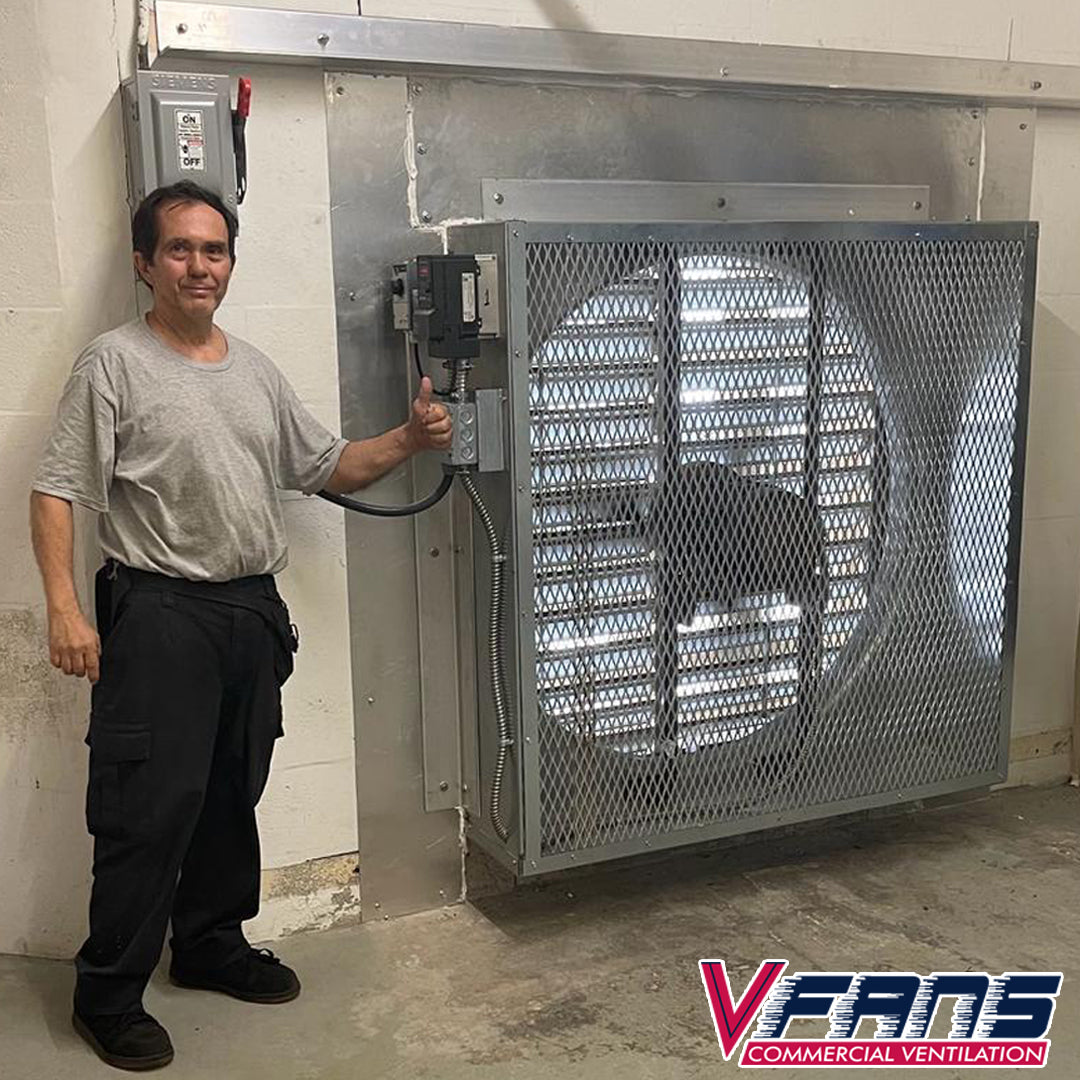

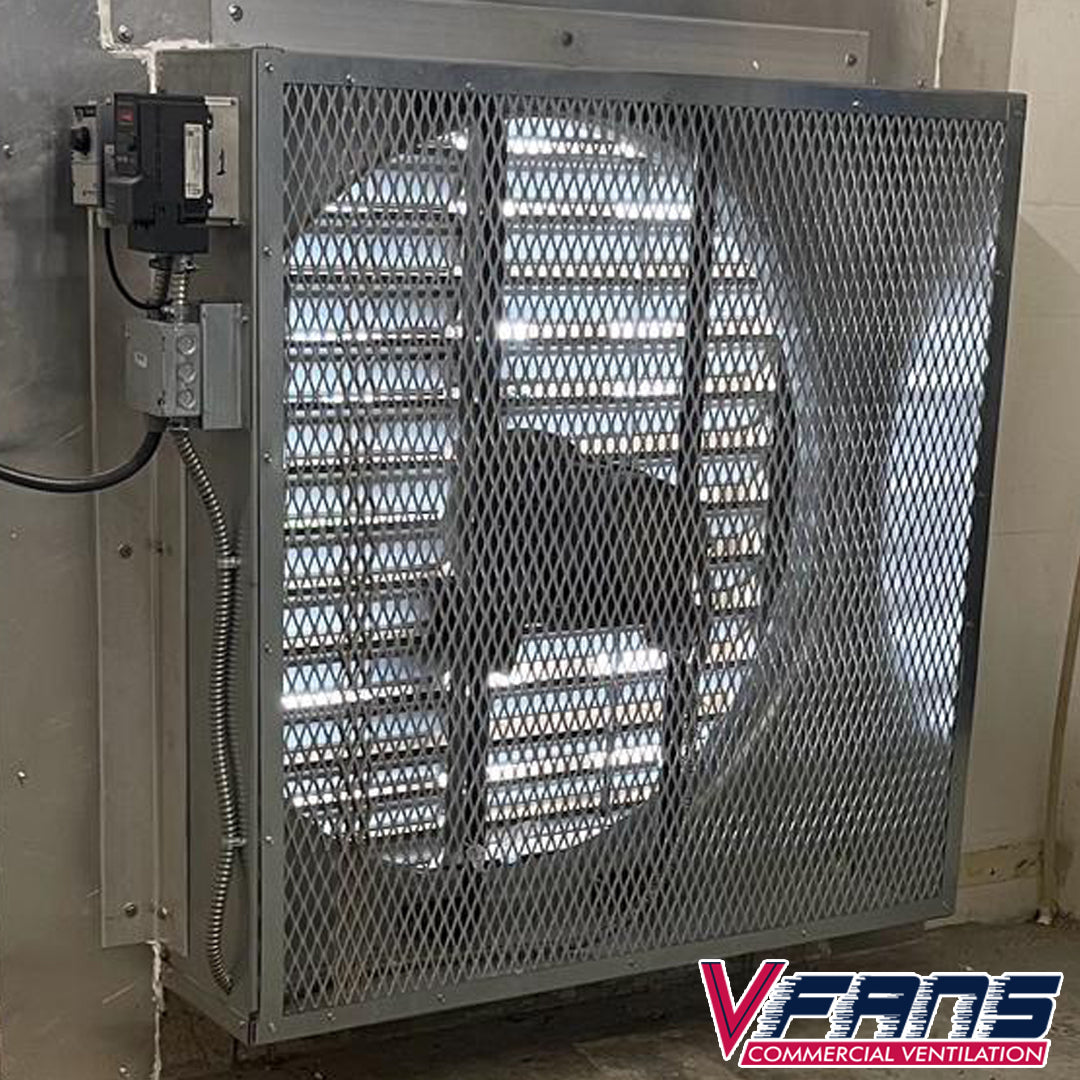

The number of Exhaust and supply fans required will depend on the size of the building. In a small confined setting,a single Alpha 48/3B Exhaust Fan on the roof or embedded in the wall while keeping the loading dock’s overhead door open should be sufficient to create Airflow and rid the place of hot air. In larger facilities, we might recommend installing several Exhaust Fan units to pull out the tainted air, and a matching number of fans on the opposite end to supply external fresh air. In larger settings air-circulator fans may be necessary to boost the Airflow.

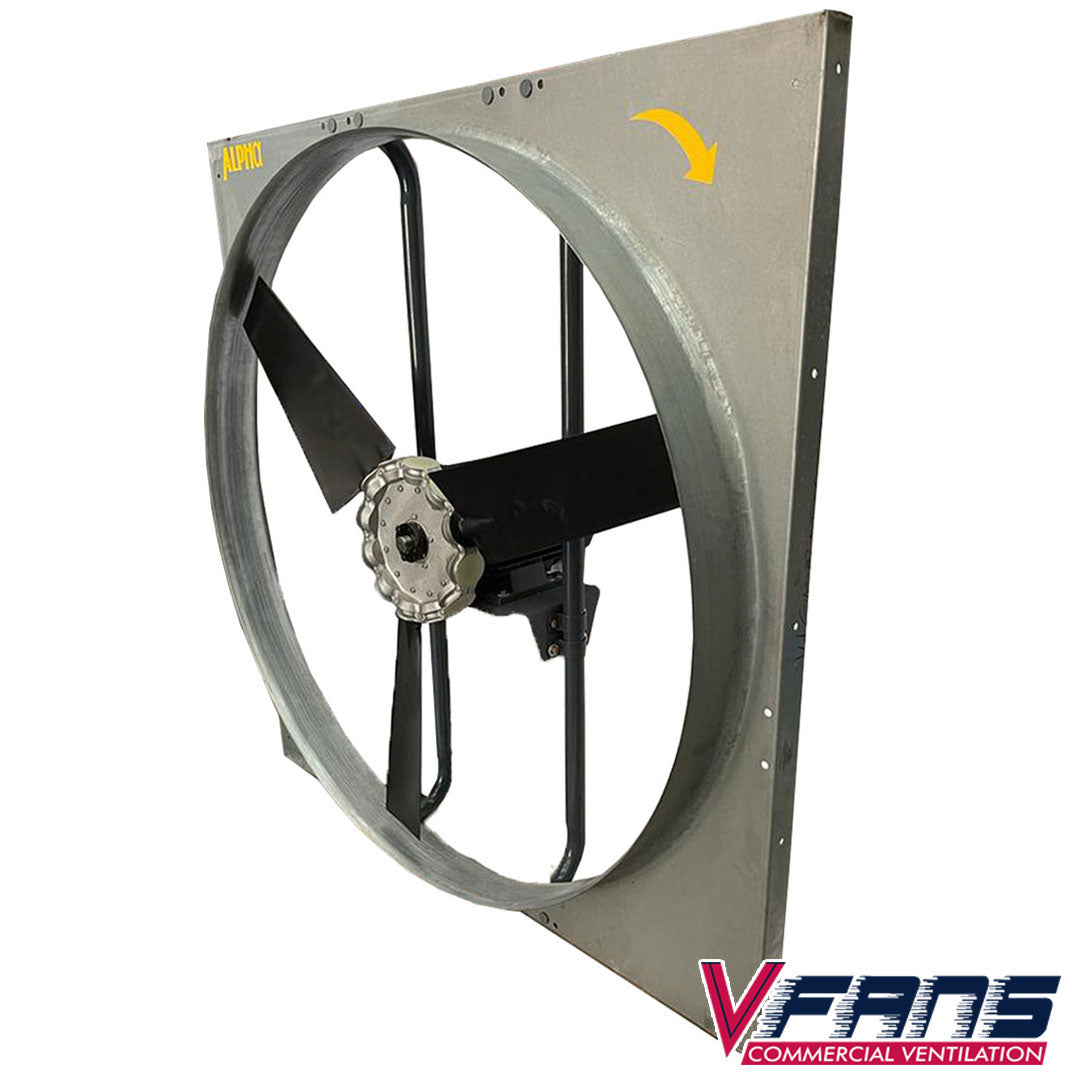

Introducing ALPHA 48/3B, our latest industrial ventilation exhaust fan, a robust solution for superior air circulation in demanding environments. Crafted with galvanized steel, the main frame boasts a generous Ø50" opening, ensuring efficient airflow.

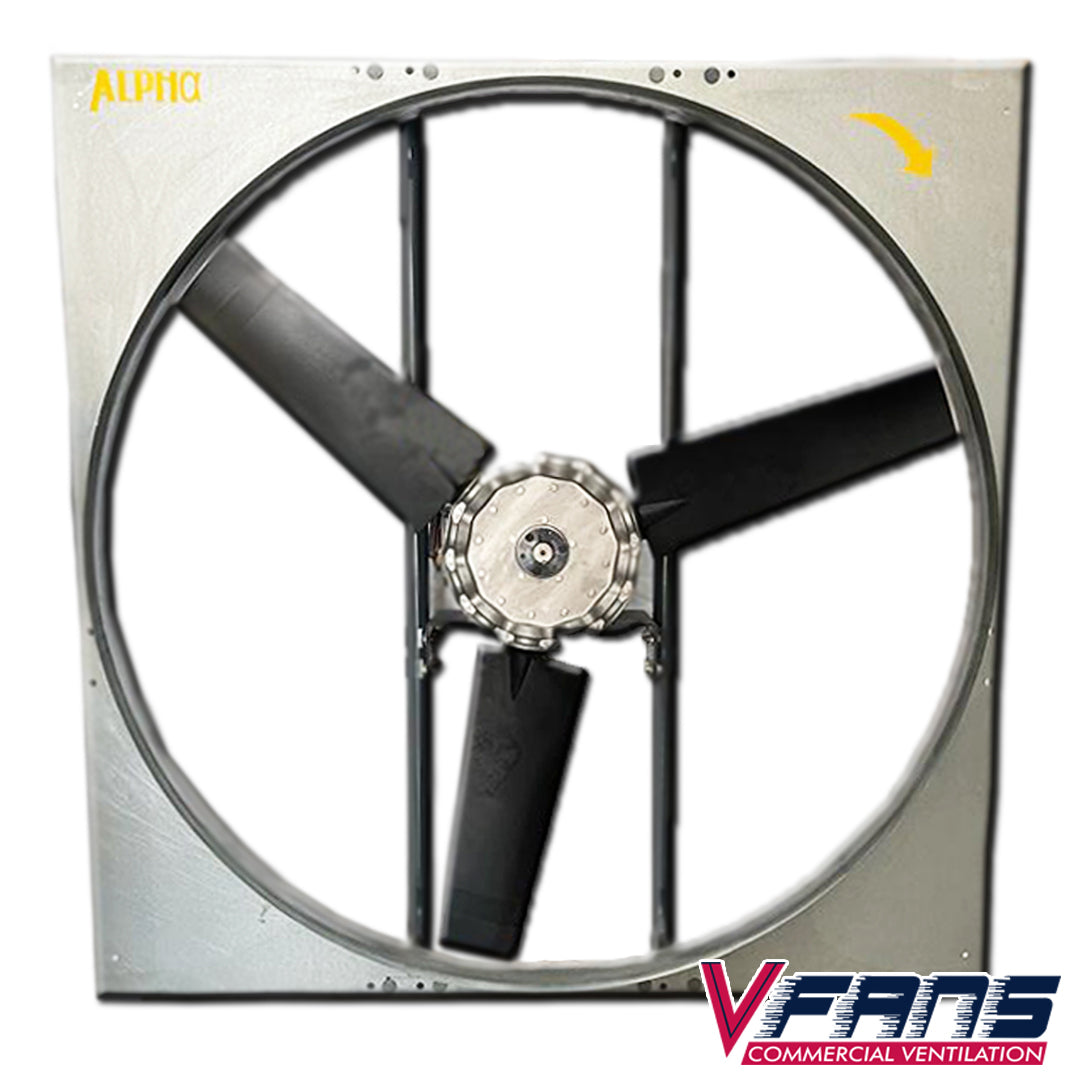

The adjustable 3-blade polypropylene impeller, supported by a steel tubular motor frame in industrial gray powder coating, guarantees durability.

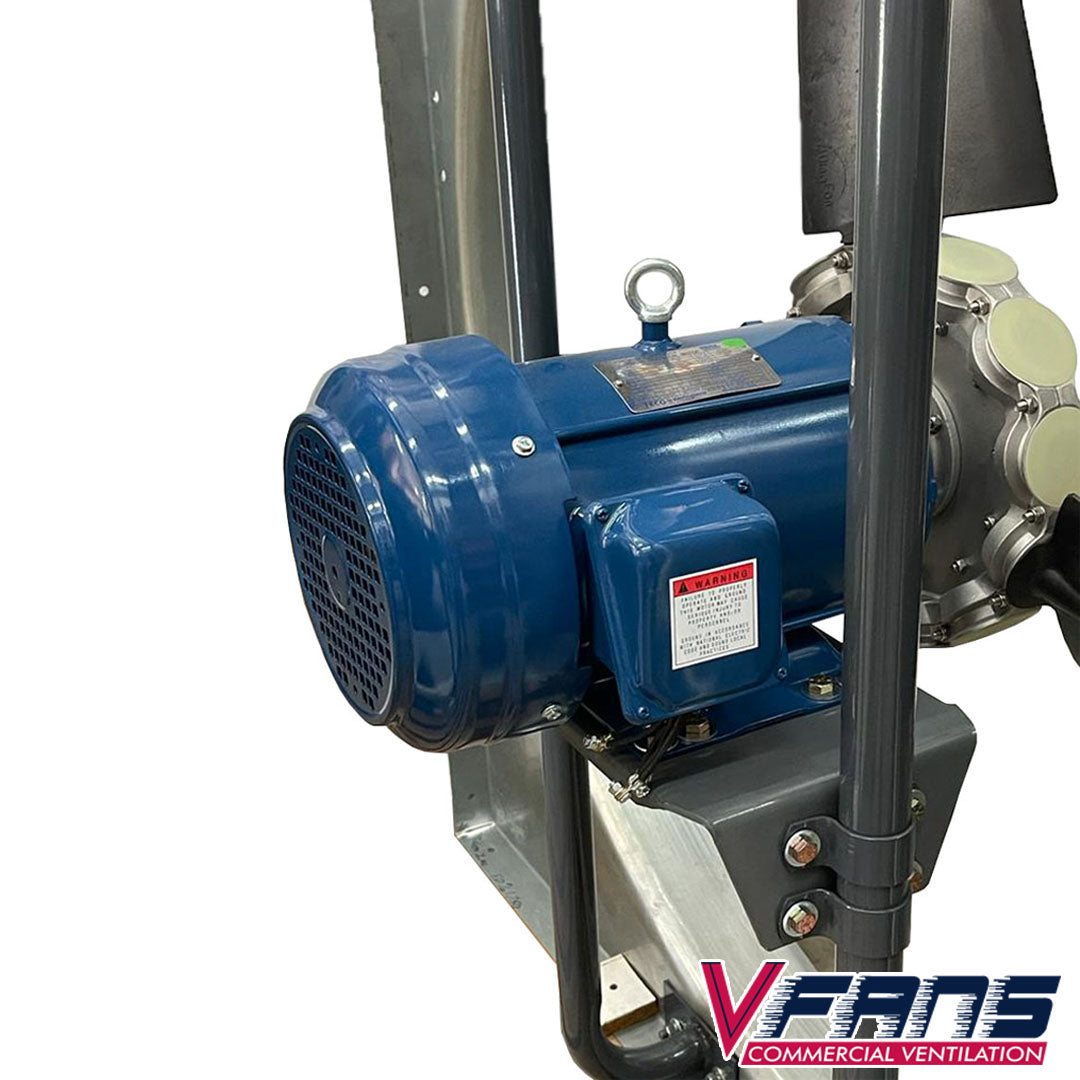

Weighing 114 lbs, with a powerful TEAO motor from Bluffton, this fan delivers 16,230 CFM at 00" SP. With a 1 HP motor operating at 890 RPM, this unit is optimized for best performance at 230 volts in a single-phase configuration.

TYPE:  AXIAL
APPLICATION:  EXHAUST / SUPPLY
SIZE:  Ø48”
DIMENSIONS:  54″ H x 54″ W x 17″ D x 2″
DRIVE:  DIRECT
MAIN FRAME MATERIAL:  HEAVY DUTY GALVANIZED STEEL
MAIN FRAME OPENING: Ø 50″
IMPELLER: ADJUSTABLE 3-BLADE POLYPROPYLENE
STEEL TUBULAR MOTOR SUPPORT: INDUSTRIAL GRAY POWDER COATED
ACTUAL WEIGHT: 114 lbs
SHIPPING WEIGHT: 180 lbs
CFM: 16,230 @ 00” SP
MOTOR TYPE:  TEAO (TOTALLY ENCLOSED AIR OVER)
MOTOR BRAND:  BLUFFTON
RPM: 890
VOLTS: 230
PHASE: 1
HP: 1.
