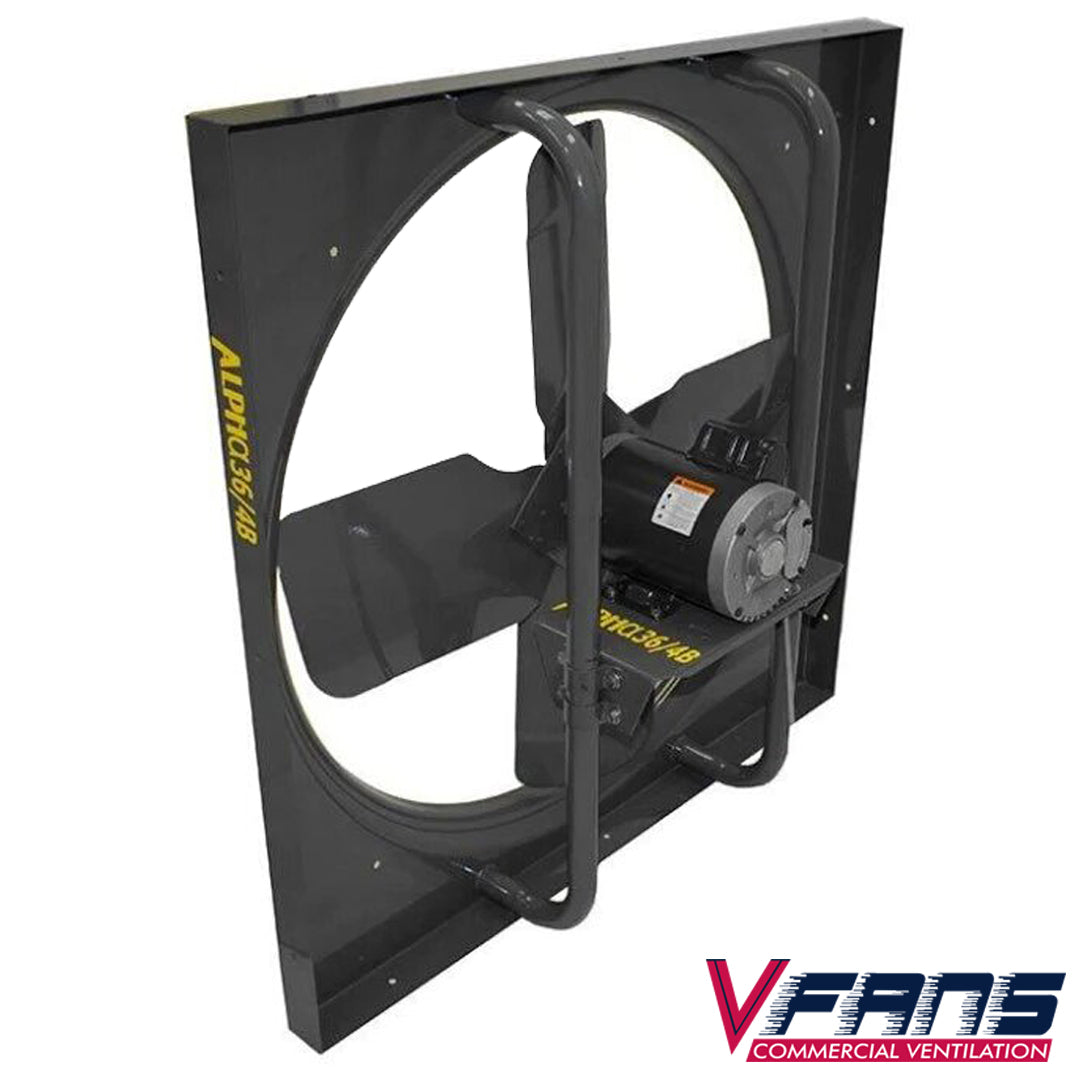

ALPHA 36/4B 36-Inch Industrial Exhaust Fan
10,130 CFM, 4 Steel Blades,
Actual Weight 84 lbs, 1 HP, 9.6 Amps
230 VAC, Single Phase.
FEATURES:
Alpha Exhaust Fans
▫ Rugged Direct Drive Sidewall Fan with 4 Steel Impeller blades designed to be embedded in wall.
▫ Venturi style panel with tubular motor support structure built with Heavy Duty 12-Gauge steel for durability. Adjustable motor base.
▫ Side perforations simplifies installation.
▫ Front perforations helps mount Guard (not included).
▫ High Efficiency / Low Noise Air Circulator.
▫ Air Exhaust, Supply or Re-Circulation fan.
▫Single Phase motor (230 V)
▫Applications: Wherever hot or polluted air needs to be removed from or fresher air needs to be supplied to.
▫ A low cost air moving solution for Warehouses, Schools, Hospitals, Generator Rooms, Boiling Rooms, Stables, Dairy Farms, Barns, Poultry farms, Greenhouses, Sewage Plants, Elevators Shafts, Tunnels, Parking Lots.
▫ ON SPECIAL ORDERS: Customized versions available with
Hazardous Environment Resistant motors and impellers.
| SKU | 747 |
|---|---|
| Manufacturer | Alphafans |
| Model Number | Alpha 36/4B |
| Free Shipping | No |
| Date added | No |
| UPC | 0851225004508 |
| Fan Type | Exhaust Fan |
| No. of Blades | 4 |
| Propeller Ø | 36 |
| Propeller Material | Steel |
| CFM | 15000 |
| RPM | 1150 |
| Voltage | 230 |
| Amps | 9.6-4.8 |
| HP | 1 |
| Hz | 60 |
| Phase | 1 |
| Motor | US Motors |
| Product Color | Industrial Grey |
| Dimensions | 42.03″ (H) x 42.03″ (W) x 16″ (D) |
| Weight (LB) | 84 lbs. (Actual Weight) |
| Packaging Size | Ships on Pallet 52″ (L) x 44″ (W) x 47″ (H) |
| Manufacturer’s Warranty | 1-Year Limited Warranty |
| Documentation | No |
| Applications / Industry | Warehouses, Schools, Hospitals, Generator Rooms, Boiling Rooms, Stables, Dairy Farms, Barns, Poultry farms, Greenhouses, Sewage Plants, Elevators Shafts, Tunnels, Parking Lots |
